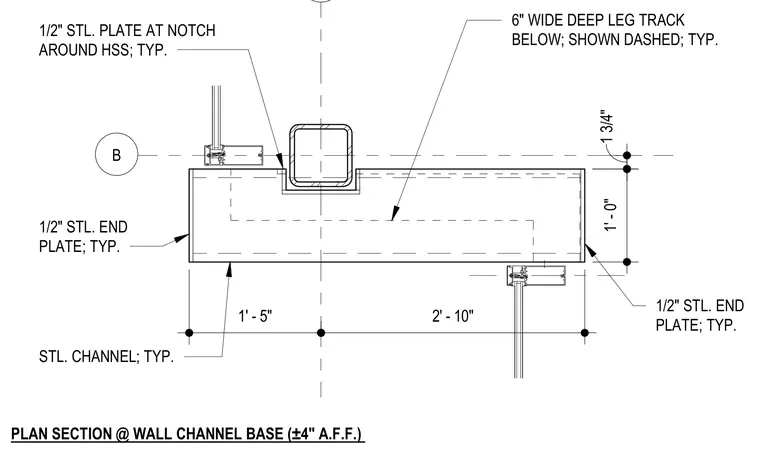

This plan detail shows a typical steel channel base assembly located approximately 4 inches above the finished floor. The assembly features a 6-inch wide deep leg track shown dashed below, flanked by a typical steel channel with a one-foot zero-inch dimension. A typical one-half-inch steel end plate caps the channel ends. A one-half-inch steel plate is notched to fit closely around a hollow structural section column.
B 1' - 5" PLAN SECTION @ WALL CHANNEL BASE (±4" A.F.F.) 1 3/4" 1' - 0" 6" WIDE DEEP LEG TRACK BELOW; SHOWN DASHED; TYP. STL. CHANNEL; TYP. 1/2" STL. END PLATE; TYP. 1/2" STL. END PLATE; TYP. 1/2" STL. PLATE AT NOTCH AROUND HSS; TYP. 2' - 10"
