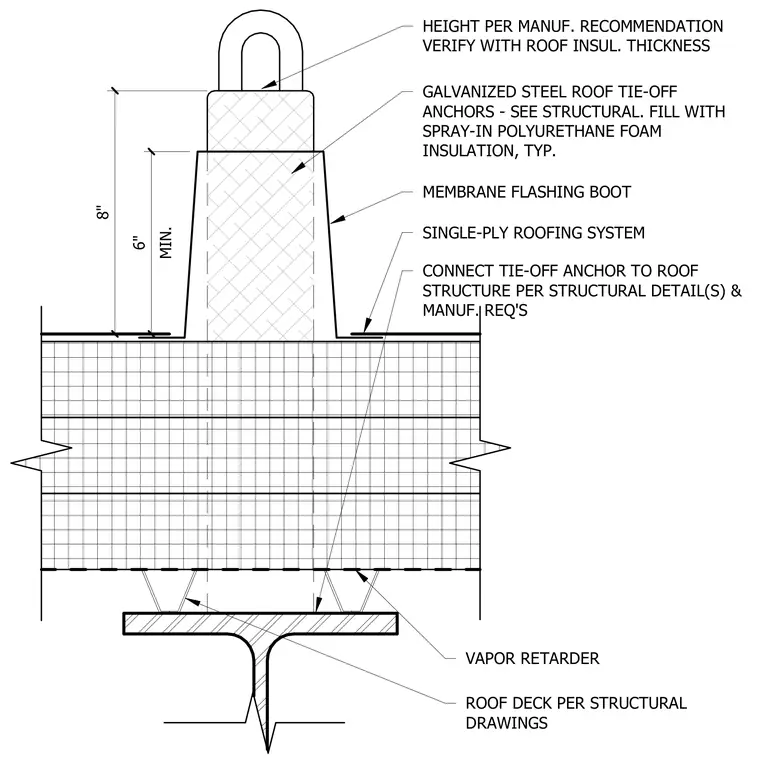

Galvanized steel roof tie-off anchors are mounted to the roof structure, verified with the roof insulation thickness, and filled with spray-in polyurethane foam insulation. A membrane flashing boot seals the penetration through the single-ply roofing system. The anchor connects to the roof structure per structural details and manufacturer requirements. Below the assembly, an eight-inch roof deck includes a vapor retarder.
MIN. 6" HEIGHT PER MANUF. RECOMMENDATION VERIFY WITH ROOF INSUL. THICKNESS GALVANIZED STEEL ROOF TIE-OFF ANCHORS - SEE STRUCTURAL. FILL WITH SPRAY-IN POLYURETHANE FOAM INSULATION, TYP. MEMBRANE FLASHING BOOT SINGLE-PLY ROOFING SYSTEM CONNECT TIE-OFF ANCHOR TO ROOF STRUCTURE PER STRUCTURAL DETAIL(S) & MANUF. REQ'S VAPOR RETARDER 8" ROOF DECK PER STRUCTURAL DRAWINGS
