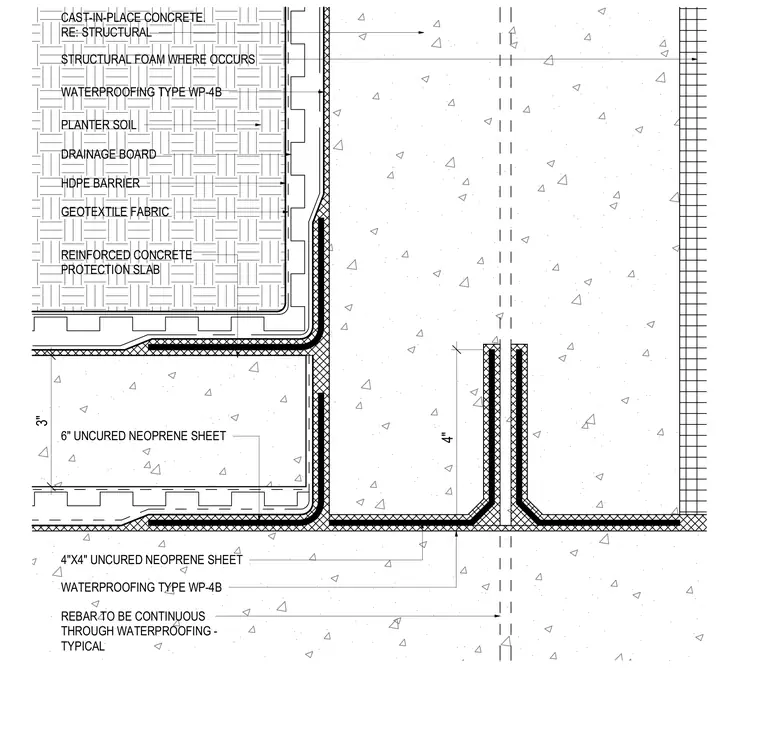

A reinforced cast-in-place concrete planter separation wall has continuous waterproofing type WP-4B applied across the assembly. Structural foam is placed where required, and planter soil is retained behind a drainage board, high-density polyethylene barrier, and geotextile fabric. A reinforced concrete protection slab is laid over a 3-inch dimension, featuring a 6-inch uncured neoprene sheet and a 4-inch by 4-inch uncured neoprene sheet at the expansion joint gap. Rebar continues through the waterproofing membrane as typical.
CAST-IN-PLACE CONCRETE. RE: STRUCTURAL STRUCTURAL FOAM WHERE OCCURS WATERPROOFING TYPE WP-4B PLANTER SOIL DRAINAGE BOARD HDPE BARRIER GEOTEXTILE FABRIC REINFORCED CONCRETE PROTECTION SLAB 3" 6" UNCURED NEOPRENE SHEET 4"X4" UNCURED NEOPRENE SHEET WATERPROOFING TYPE WP-4B REBAR TO BE CONTINUOUS THROUGH WATERPROOFING - TYPICAL 4"
