Architectural · A-PYSZS

Accessibility Door Clearances

Elements

About this detail

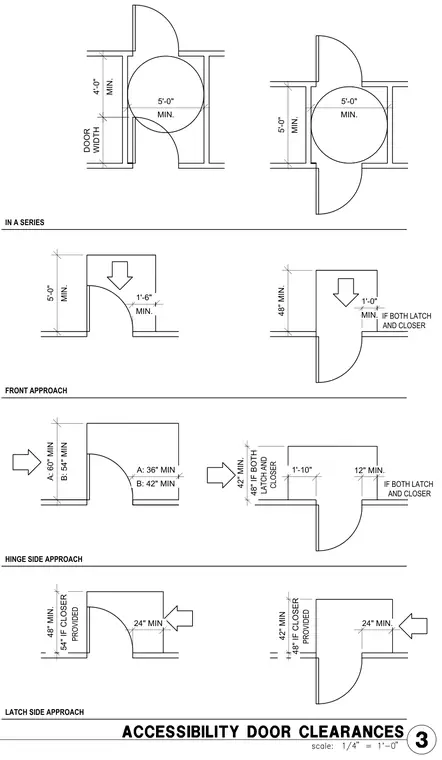

Accessible door maneuvering clearances are defined for front, hinge side, latch side, and in-series door approaches in compliance with accessibility standards. Required pull and push side dimensions vary depending on the presence of a door closer, latch, and approach direction. Minimum dimensions range from twelve inches to sixty inches depending on hardware configurations and approach vectors. Door width and clear floor space requirements are dimensioned for each scenario.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
