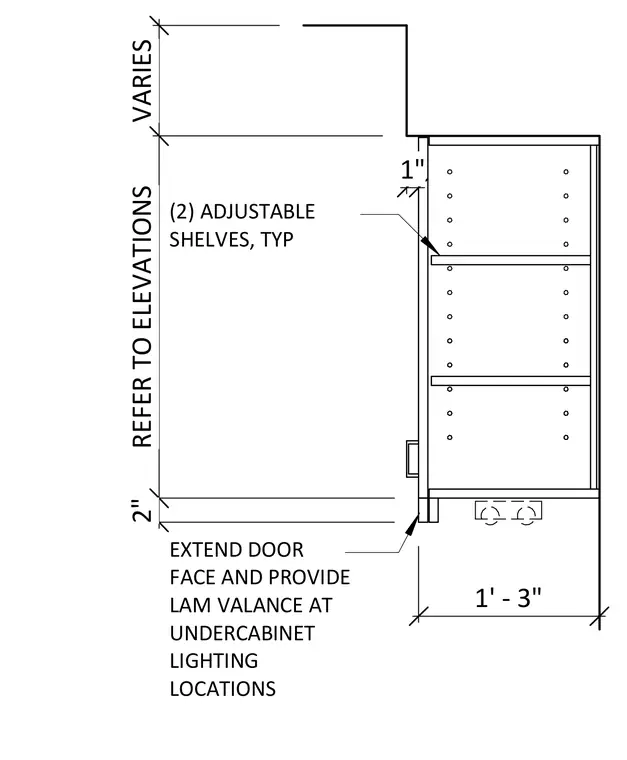

Upper cabinet assembly features a depth of one foot three inches and incorporates two typical adjustable shelves supported on shelf pins. The door face extends downward to provide a laminate valance at undercabinet lighting locations. Vertical clearances and overall heights vary per elevations.
1" 2" REFER TO ELEVATIONS VARIES 1' - 3" (2) ADJUSTABLE SHELVES, TYP EXTEND DOOR FACE AND PROVIDE LAM VALANCE AT UNDERCABINET LIGHTING LOCATIONS
