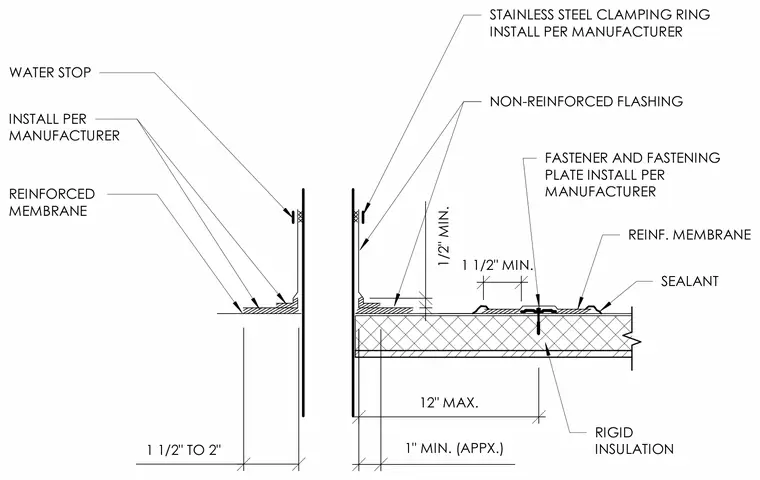

This waterproofing detail shows a membrane termination assembly utilizing a stainless steel clamping ring installed per the manufacturer. Non-reinforced flashing and reinforced membrane layers integrate with a water stop over rigid insulation. Fasteners and fastening plates secure the assembly with specified minimum clearances and maximum spacings.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
