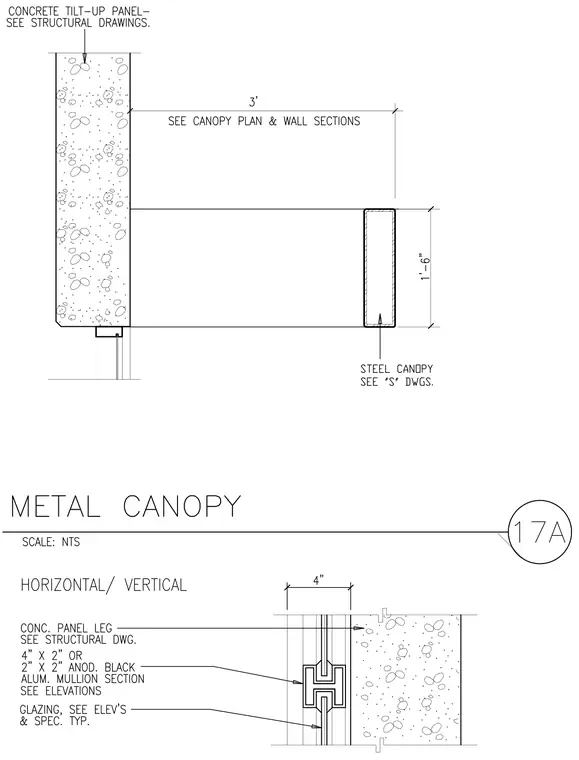

A structural steel canopy extends three feet from a concrete tilt-up wall, with steel canopy framing sized per structural drawings. Below the canopy, an anodized black aluminum mullion section measuring 4 inches by 2 inches or 2 inches by 2 inches integrates with glazing and the concrete panel leg. Concrete panel and structural elements are detailed per structural drawings, while glazing follows project elevations and typical specifications.
