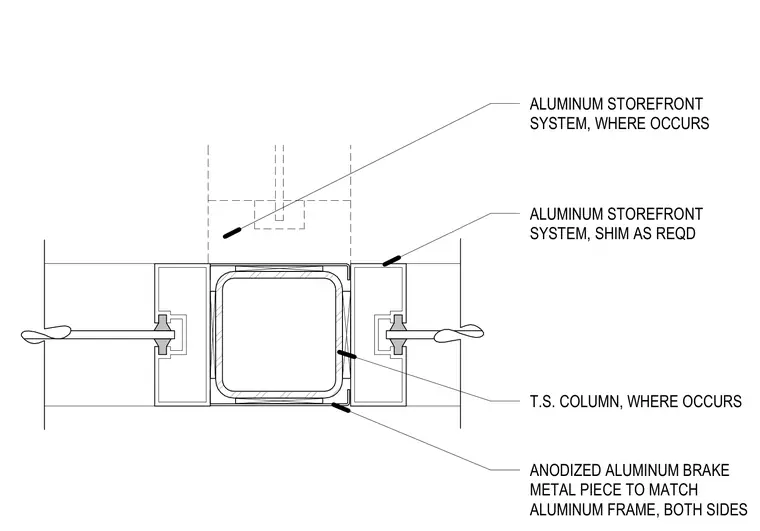

An aluminum storefront system terminates at a hollow structural steel column acting as a free end jamb. Shims are installed as required between the aluminum frame and the structural support. Anodized aluminum brake metal pieces are fitted to both sides to match the aluminum frame finish.
T.S. COLUMN, WHERE OCCURS ANODIZED ALUMINUM BRAKE METAL PIECE TO MATCH ALUMINUM FRAME, BOTH SIDES ALUMINUM STOREFRONT SYSTEM, WHERE OCCURS ALUMINUM STOREFRONT SYSTEM, SHIM AS REQD
