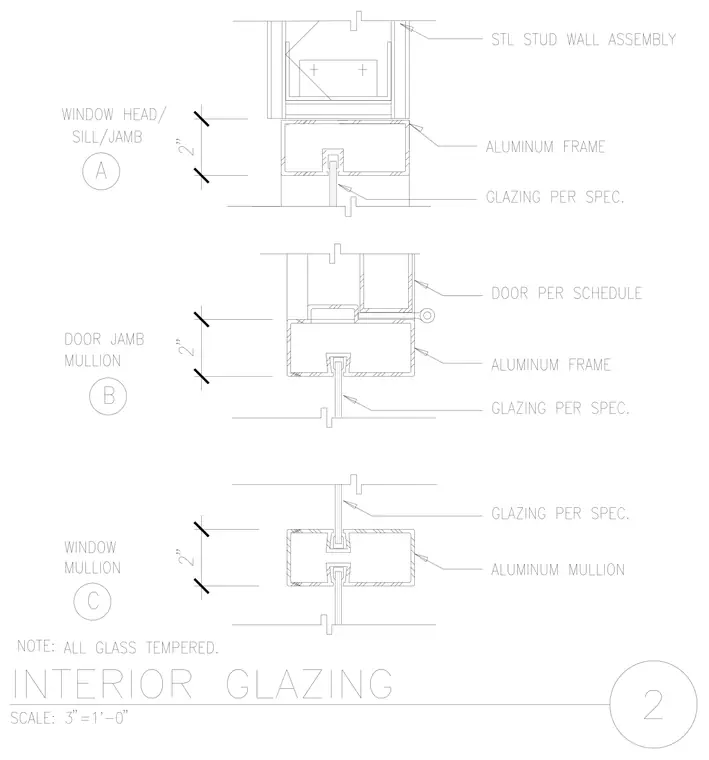

The top detail provides an interior window head, sill, or jamb with an aluminum frame secured beneath a steel stud wall assembly, receiving glazing per specification with a two-inch dimension. The middle detail sets a door jamb mullion where an aluminum frame and door per schedule interface with the surrounding construction. The bottom detail connects an intermediate window mullion joining adjacent glazing panels within an aluminum frame system. A general note specifies that all glass must be tempered.
