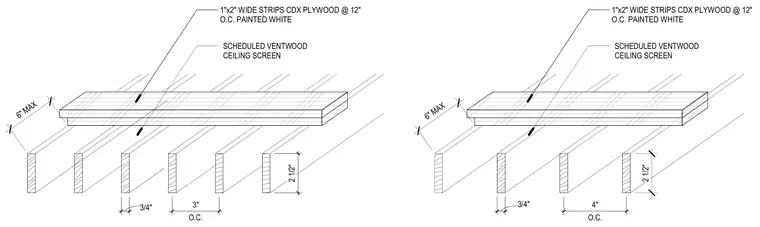

The scheduled Ventwood ceiling screen consists of timber slats spaced at maximum six-inch intervals with three-inch or four-inch on-center spacing options. One-by-two-inch wide strips of CDX plywood painted white are installed at twelve inches on center above the screen slats. The timber members measure three-quarters of an inch thick by two and one-half inches deep.
O.C. 3" - 2 1/2" 3/4" 1"x2" WIDE STRIPS CDX PLYWOOD @ 12" O.C. PAINTED WHITE SCHEDULED VENTWOOD CEILING SCREEN 6" MAX O.C. 4" - 3/4" 1"x2" WIDE STRIPS CDX PLYWOOD @ 12" O.C. PAINTED WHITE SCHEDULED VENTWOOD CEILING SCREEN 2 1/2" 6" MAX
