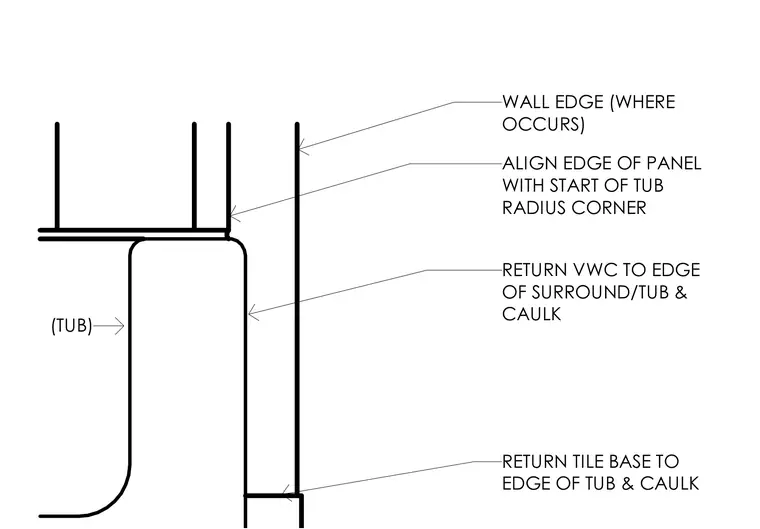

The tile base returns to the edge of the tub and is sealed with caulk. The vinyl wall covering returns to the edge of the tub surround and is sealed with caulk. The panel edge aligns with the start of the tub radius corner at the wall edge.
(TUB) RETURN TILE BASE TO EDGE OF TUB & CAULK RETURN VWC TO EDGE OF SURROUND/TUB & CAULK ALIGN EDGE OF PANEL WITH START OF TUB RADIUS CORNER WALL EDGE (WHERE OCCURS)
