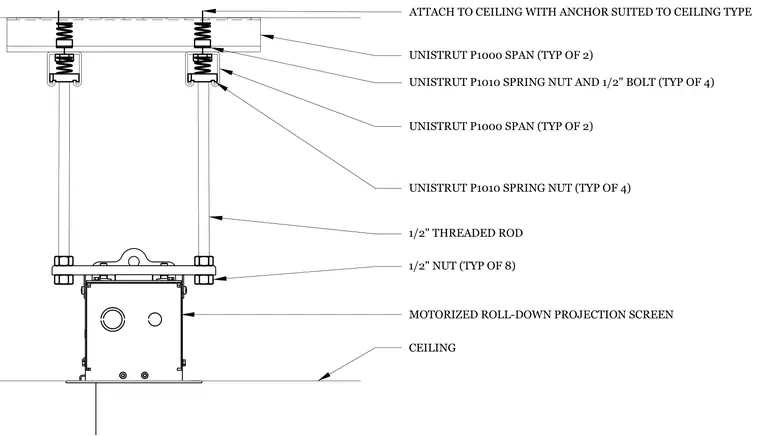

A ceiling-mounted motorized roll-down projection screen is suspended from the overhead ceiling structure using two parallel Unistrut P1000 spans attached via anchors suited to the ceiling type. Four Unistrut P1010 spring nuts and half-inch bolts secure the framing to the anchor points. Four half-inch threaded rods drop down from the channels to support the screen housing. Eight half-inch nuts secure the screen mounting brackets to the threaded rods.
CEILING MOTORIZED ROLL-DOWN PROJECTION SCREEN 1/2" NUT (TYP OF 8) 1/2" THREADED ROD UNISTRUT P1010 SPRING NUT (TYP OF 4) UNISTRUT P1000 SPAN (TYP OF 2) UNISTRUT P1010 SPRING NUT AND 1/2" BOLT (TYP OF 4) UNISTRUT P1000 SPAN (TYP OF 2) ATTACH TO CEILING WITH ANCHOR SUITED TO CEILING TYPE
