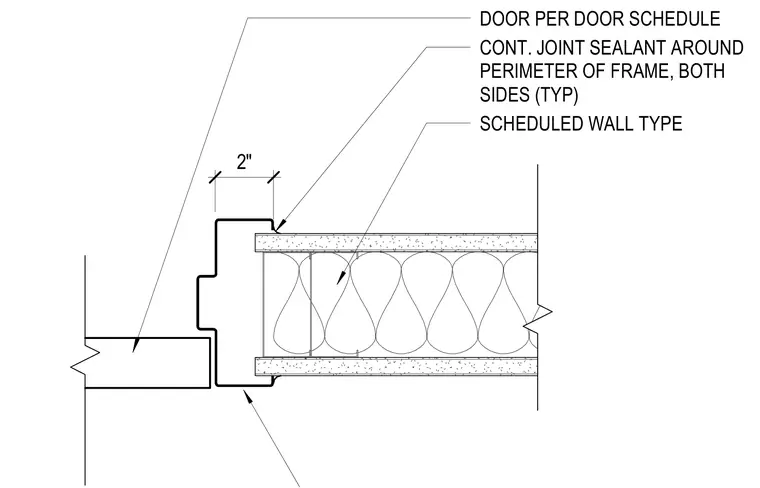

A door frame jamb is installed within a scheduled wall type. Continuous joint sealant is applied along the perimeter of the frame on both sides. A two-inch dimension indicates the frame profile, and the door itself is sized per the door schedule.
CONT. JOINT SEALANT AROUND PERIMETER OF FRAME, BOTH SIDES (TYP) SCHEDULED WALL TYPE 2" DOOR PER DOOR SCHEDULE
