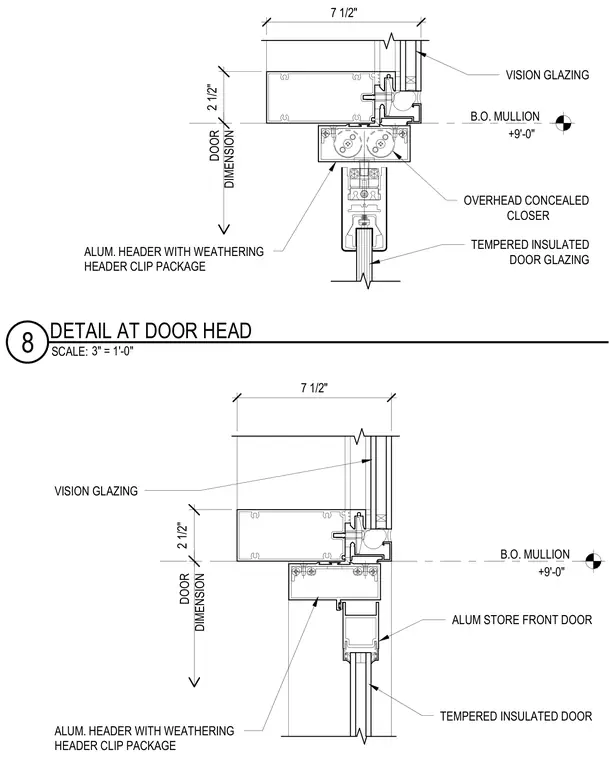

An aluminum storefront door head assembly sits below a transom with vision glazing, set at a bottom of mullion elevation of plus nine feet zero inches. The aluminum header incorporates a weathering and header clip package. An overhead concealed closer is integrated directly above the tempered insulated door glazing.
7 1/2" B.O. MULLION +9'-0" ALUM STORE FRONT DOOR ALUM. HEADER WITH WEATHERING HEADER CLIP PACKAGE VISION GLAZING DOOR DIMENSION 2 1/2" TEMPERED INSULATED DOOR 7 1/2" B.O. MULLION +9'-0" ALUM. HEADER WITH WEATHERING HEADER CLIP PACKAGE DOOR DIMENSION 2 1/2" OVERHEAD CONCEALED CLOSER TEMPERED INSULATED DOOR GLAZING VISION GLAZING SCALE: 3" = 1'-0" 8 DETAIL AT DOOR HEAD
