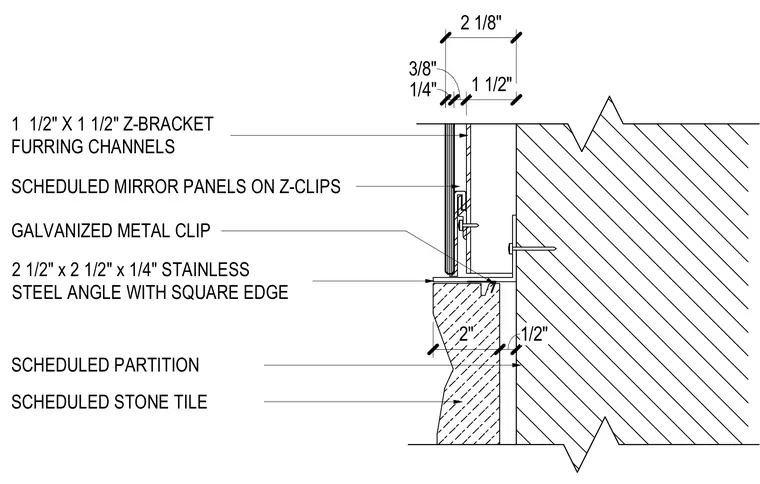

Scheduled mirror panels are mounted on Z-clips attached to one-and-a-half-inch by one-and-a-half-inch Z-bracket furring channels. A two-and-a-half-inch by two-and-a-half-inch by quarter-inch stainless steel angle with a square edge supports the assembly above scheduled stone tile and a scheduled partition. A galvanized metal clip secures the mirror panel system. Dimensions indicate a half-inch clearance from the partition and a two-inch thickness for the stone tile.
SCHEDULED STONE TILE 2 1/2" x 2 1/2" x 1/4" STAINLESS STEEL ANGLE WITH SQUARE EDGE GALVANIZED METAL CLIP SCHEDULED PARTITION 1 1/2" X 1 1/2" Z-BRACKET FURRING CHANNELS SCHEDULED MIRROR PANELS ON Z-CLIPS 2" 1/2" 1/4" 3/8" 1 1/2" 2 1/8"
