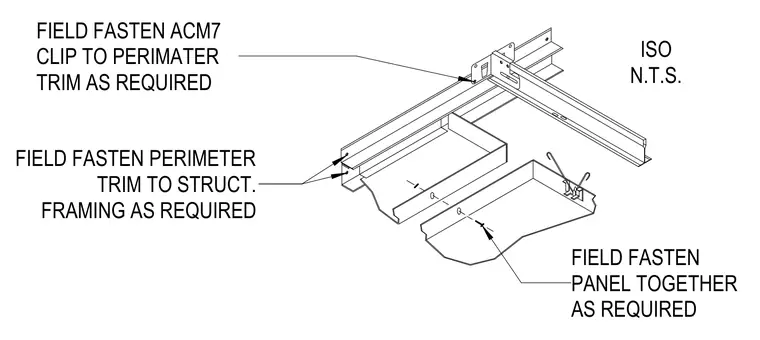

The ACM7 clip fastens to the perimeter trim as required in the field. The perimeter trim attaches to the structural framing with appropriate fasteners. Individual panels secure directly to each other as required.
FIELD FASTEN ACM7 CLIP TO PERIMATER TRIM AS REQUIRED FIELD FASTEN PERIMETER TRIM TO STRUCT. FRAMING AS REQUIRED ISO N.T.S. FIELD FASTEN PANEL TOGETHER AS REQUIRED
