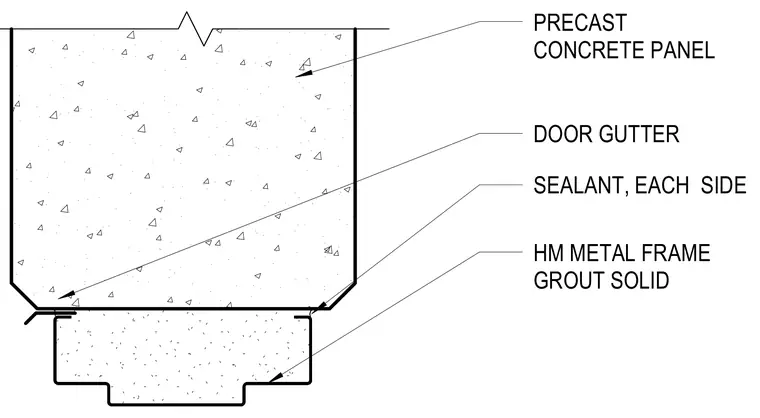

A hollow metal frame is set within a precast concrete panel opening and grouted solid. A door gutter is integrated at the head condition. Joint sealant is applied at each side of the frame interface.
