Roof Cable Penetration Housing Axonometric and Plan

Materials

Aluminum

Elements

Roofs Decks Site / Paving Roof / Floor Openings

Connections

Deck Attachment

About this detail

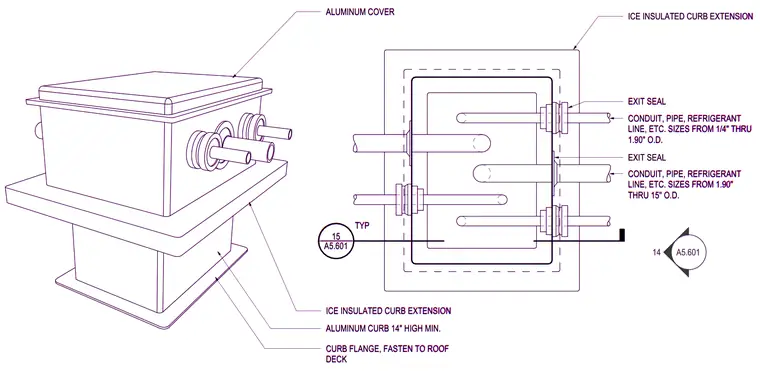

This assembly consists of an aluminum curb at least fourteen inches high with a curb flange fastened to the roof deck, fitted with an ice-insulated curb extension and an aluminum cover. Conduits, pipes, and refrigerant lines ranging from one-quarter inch through fifteen inches outside diameter penetrate the housing and are secured with exit seals.
