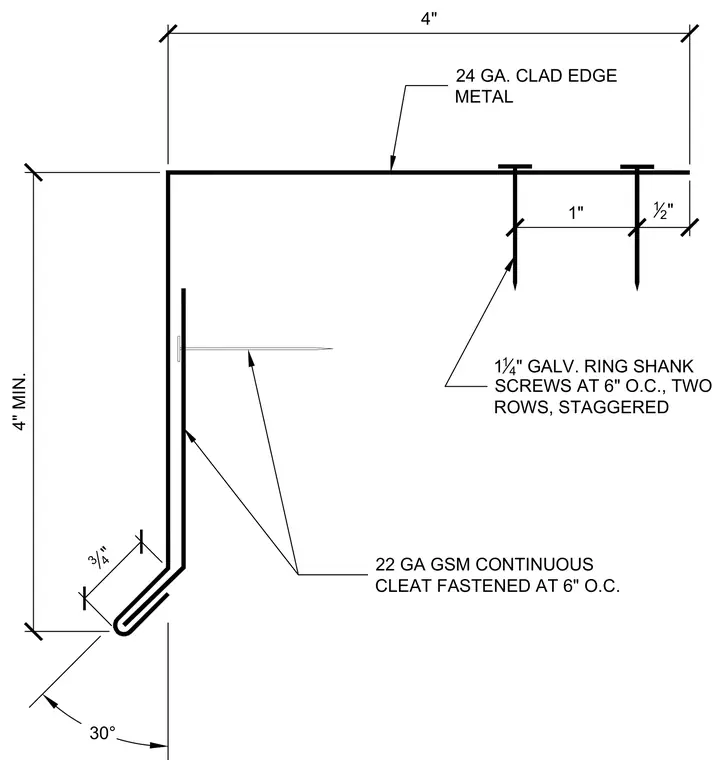

Twenty-four gauge clad edge metal forms the roof or wall perimeter flashing, spanning four inches horizontally and providing a minimum four-inch vertical drop. A twenty-two gauge galvanized steel continuous cleat hooks into the hemmed lower edge of the metal profile at a thirty-degree angle and is fastened at six inches on center. The horizontal flange is anchored using one-and-one-quarter-inch galvanized ring shank screws spaced at six inches on center in two staggered rows.
1 1 4 " GALV. RING SHANK SCREWS AT 6" O.C., TWO ROWS, STAGGERED 12 " 1" 24 GA. CLAD EDGE METAL 4" 4" MIN. 3 4 " 30° 22 GA GSM CONTINUOUS CLEAT FASTENED AT 6" O.C.
