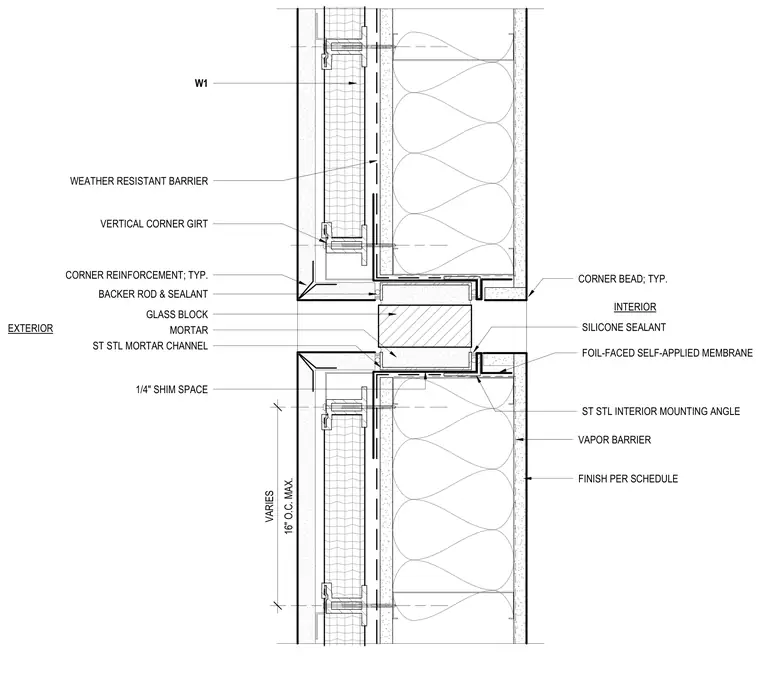

A glass block wall corner assembly integrates with a vertical corner girt and stainless steel interior mounting angle. A foil-faced self-applied membrane functions alongside a weather-resistant barrier and vapor barrier for moisture protection. The glass block units are laid in mortar with a stainless steel mortar channel and sealed with backer rod and silicone sealant. A one-quarter-inch shim space accommodates tolerances, while corner reinforcement and corner beads finish the exterior and interior junctions.
INTERIOR EXTERIOR 16" O.C. MAX. VARIES W1 WEATHER RESISTANT BARRIER BACKER ROD & SEALANT ST STL MORTAR CHANNEL 1/4" SHIM SPACE ST STL INTERIOR MOUNTING ANGLE MORTAR GLASS BLOCK FINISH PER SCHEDULE CORNER REINFORCEMENT; TYP. VERTICAL CORNER GIRT CORNER BEAD; TYP. SILICONE SEALANT FOIL-FACED SELF-APPLIED MEMBRANE VAPOR BARRIER
