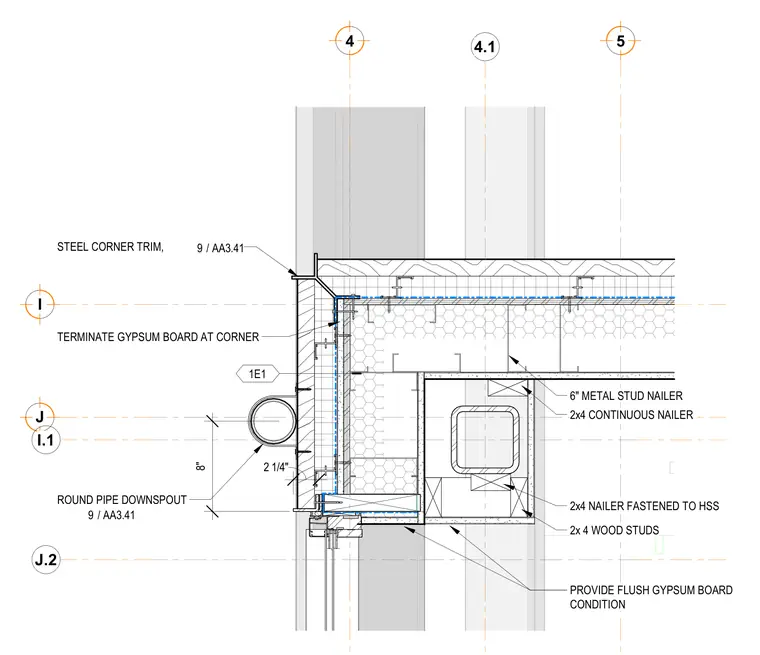

An exterior outside corner transition integrates an HSS column, metal studs, and wood blocking. A 2x4 continuous nailer and 2x4 wood studs attach directly to the HSS column, supporting a six-inch metal stud framing layer. Gypsum board terminates neatly at the corner to provide a flush interior finish. Steel corner trim wraps the exterior juncture. A round pipe downspout is positioned adjacent to the corner trim on the exterior face.
5 I 4 J I.1 4.1 J.2 ROUND PIPE DOWNSPOUT / 9 AA3.41 STEEL CORNER TRIM, / 9 AA3.41 1E1 PROVIDE FLUSH GYPSUM BOARD CONDITION 2x4 CONTINUOUS NAILER 6" METAL STUD NAILER 2x4 NAILER FASTENED TO HSS 2x 4 WOOD STUDS 8" TERMINATE GYPSUM BOARD AT CORNER 2 1/4"
