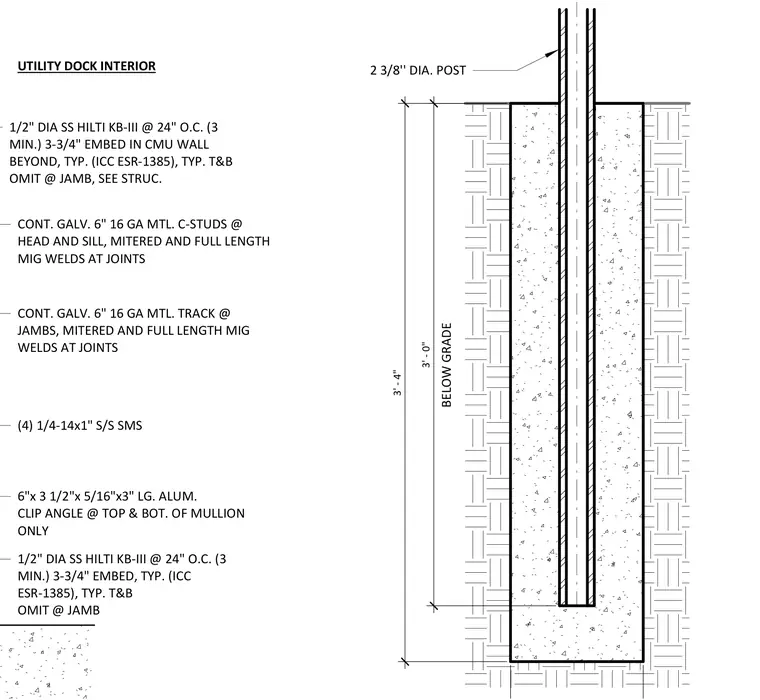

A two and three-eighths inch diameter steel post is embedded three feet below grade inside a concrete footing. Vertical dimensions establish a total depth of three feet four inches below the finished grade level. Soil and concrete hatching indicate subsurface installation at a utility dock interior location.
3' - 0" 3' - 4" 2 3/8'' DIA. POST BELOW GRADE 6"x 3 1/2"x 5/16"x3" LG. ALUM. CLIP ANGLE @ TOP & BOT. OF MULLION ONLY CONT. GALV. 6" 16 GA MTL. C-STUDS @ HEAD AND SILL, MITERED AND FULL LENGTH MIG WELDS AT JOINTS 1/2" DIA SS HILTI KB-III @ 24" O.C. (3 MIN.) 3-3/4" EMBED IN CMU WALL BEYOND, TYP. (ICC ESR-1385), TYP. T&B OMIT @ JAMB, SEE STRUC. (4) 1/4-14x1" S/S SMS 1/2" DIA SS HILTI KB-III @ 24" O.C. (3 MIN.) 3-3/4" EMBED, TYP. (ICC ESR-1385), TYP. T&B OMIT @ JAMB CONT. GALV. 6" 16 GA MTL. TRACK @ JAMBS, MITERED AND FULL LENGTH MIG WELDS AT JOINTS UTILITY DOCK INTERIOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
