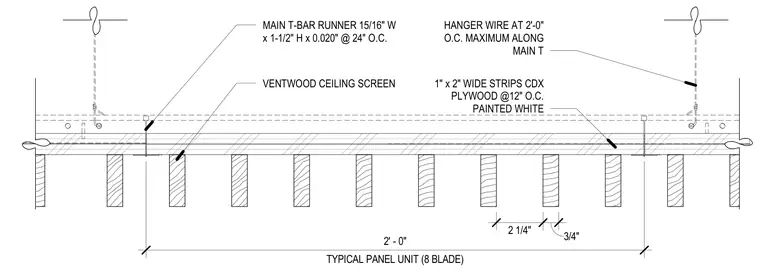

The assembly consists of a Ventwood ceiling screen made of one-inch by two-inch wide CDX plywood strips spaced at twelve inches on center and painted white. The wood screen is supported by main T-bar runners measuring fifteen-sixteenths of an inch wide by one and one-half inches high by 0.020 inches thick, spaced at twenty-four inches on center. The grid is suspended from the structure above by hanger wires spaced at a maximum of two feet on center along the main tees. Typical panel units measure two feet wide with eight blades, featuring two and one-quarter inch spacing and three-quarter inch reveals.
TYPICAL PANEL UNIT (8 BLADE) 2' - 0" 2 1/4" 3/4" MAIN T-BAR RUNNER 15/16" W x 1-1/2" H x 0.020" @ 24" O.C. VENTWOOD CEILING SCREEN 1" x 2" WIDE STRIPS CDX PLYWOOD @12" O.C. PAINTED WHITE HANGER WIRE AT 2'-0" O.C. MAXIMUM ALONG MAIN T
