An HSS 4x4x3/8 hollow structural section column spans between a concrete slab and an S10 steel beam. The top of the column is welded to a square one-inch by twelve-inch steel plate secured to the concrete slab with four three-quarter-inch diameter anchor bolts having a ten-inch embedment. The bottom of the column is welded to a one-inch by twelve-inch plate matching the beam width, fastened to the steel beam flange using four three-quarter-inch diameter ASTM A325 bolts with beveled washers and heavy flat washers. Fillet welds of five-sixteenth-inch size connect the column to the end plates typically.

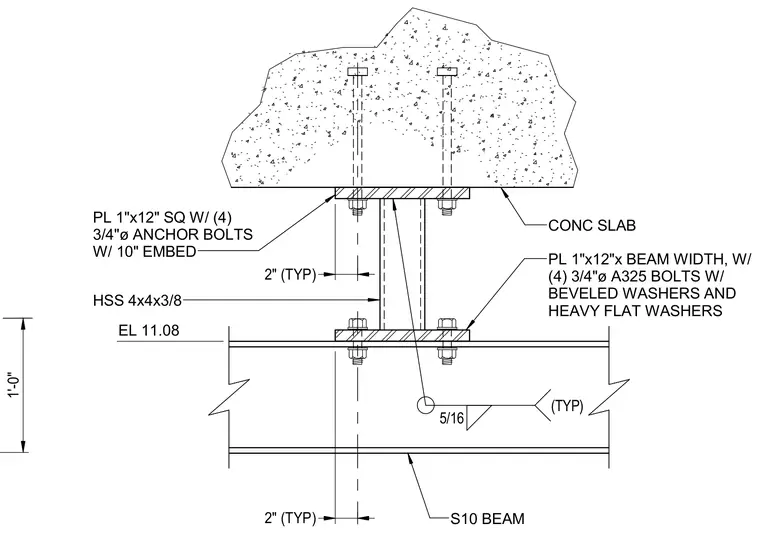

1'-0" EL 11.08 S10 BEAM PL 1"x12" SQ W/ (4) 3/4"ø ANCHOR BOLTS W/ 10" EMBED CONC SLAB 2" (TYP) 2" (TYP) PL 1"x12"x BEAM WIDTH, W/ (4) 3/4"ø A325 BOLTS W/ BEVELED WASHERS AND HEAVY FLAT WASHERS HSS 4x4x3/8 5/16 (TYP)
