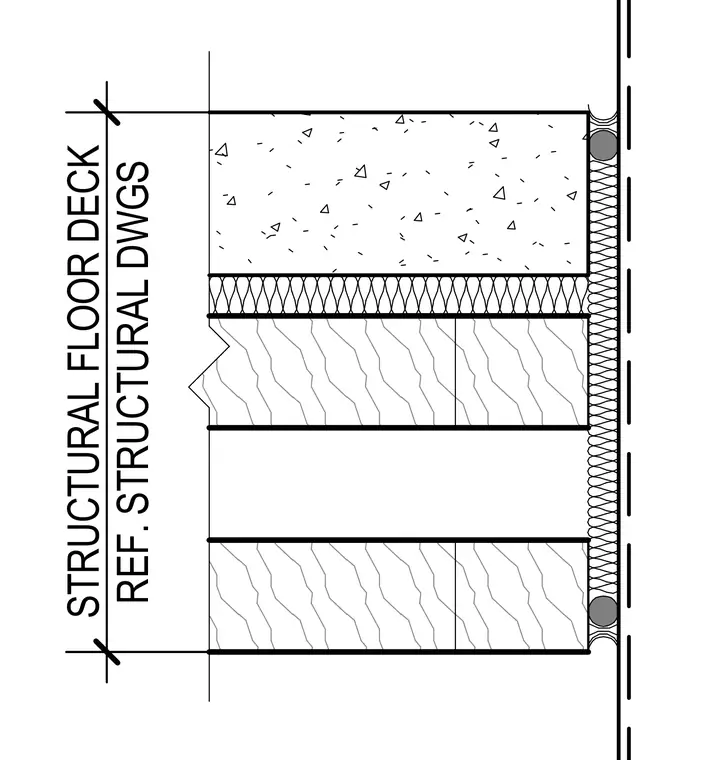

A structural floor deck junction references structural drawings. The assembly incorporates a concrete topping slab over insulation and wood framing members. Perimeter conditions show continuous insulation and sealant details.
REF. STRUCTURAL DWGS STRUCTURAL FLOOR DECK
