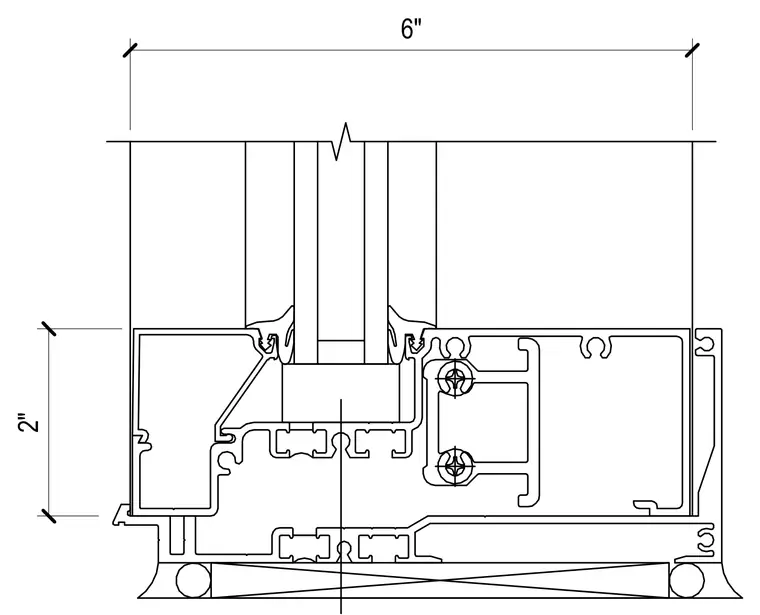

An aluminum storefront framing extrusion supports an insulated glazing unit with exterior and interior glazing gaskets. The framing profile incorporates a thermal or structural cavity fastened with screw-spline fasteners through internal webs. Overall dimensions indicate a six-inch frame width and a two-inch profile height.
