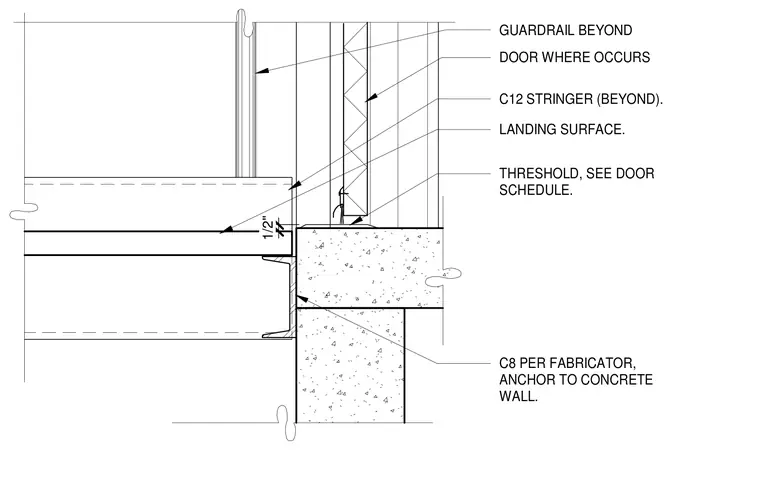

An exterior steel stair landing connects to a concrete wall using an eight-inch channel anchored per the fabricator. A twelve-inch channel stringer is positioned beyond the landing surface. A door threshold sits at the landing surface, with a guardrail located beyond the door opening.
C8 PER FABRICATOR, ANCHOR TO CONCRETE WALL. GUARDRAIL BEYOND DOOR WHERE OCCURS THRESHOLD, SEE DOOR SCHEDULE. 1/2" C12 STRINGER (BEYOND). LANDING SURFACE.
