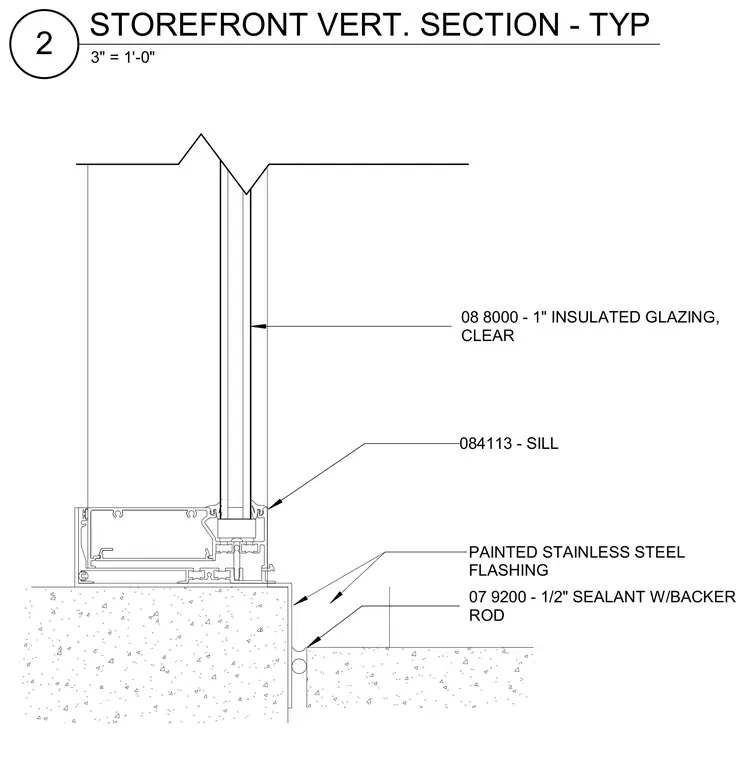

A typical storefront sill vertical section seats on a concrete substrate. The assembly incorporates one-inch clear insulated glazing resting within the storefront sill extrusion. A painted stainless steel flashing extends below the sill, sealed with one-half-inch sealant and backer rod.
08 8000 - 1" INSULATED GLAZING, CLEAR 07 9200 - 1/2" SEALANT W/BACKER ROD PAINTED STAINLESS STEEL FLASHING 084113 - SILL 3" = 1'-0" 2 STOREFRONT VERT. SECTION - TYP
