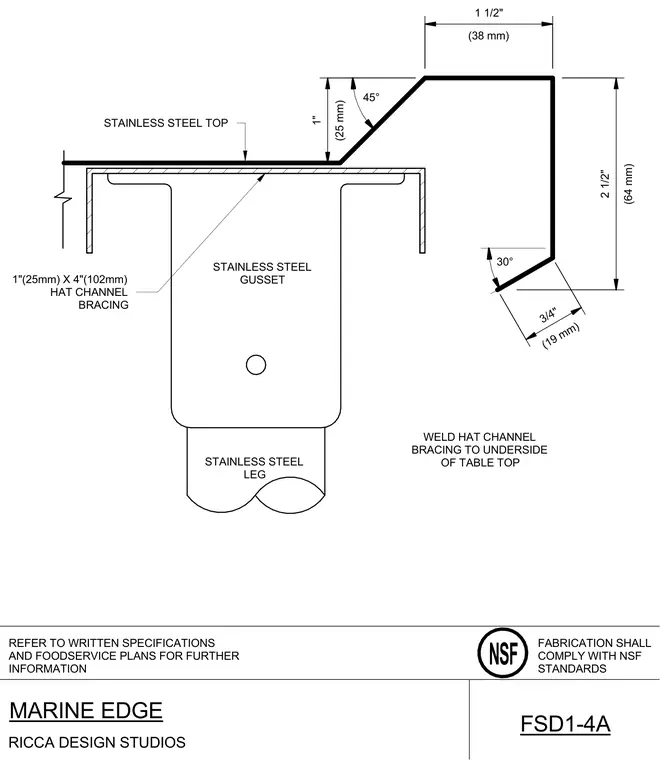

A stainless steel top features a formed marine edge with a 45-degree slope and a 1-inch vertical drop. The underside of the table top is reinforced with a 1-inch by 4-inch hat channel bracing welded directly to the surface. A stainless steel gusset connects the top assembly to a stainless steel leg. Fabrication complies with National Sanitation Foundation standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSET STAINLESS STEEL LEG STAINLESS STEEL TOP WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP 1"(25mm) X 4"(102mm) HAT CHANNEL BRACING MARINE EDGE FSD1-4A (38 mm) 1 1/2" (64 mm) 2 1/2" (25 mm) 1" (19 mm) 3/4" 45° 30°
