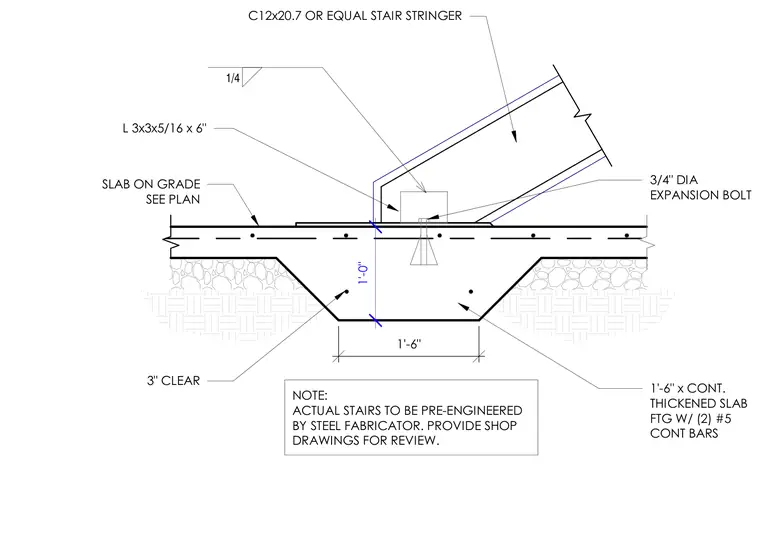

A C12x20.7 or equal stair stringer anchors to a concrete slab on grade with a thickened slab footing. The stringer connects using an L 3x3x5/16 by six-inch angle secured with a three-quarter-inch diameter expansion bolt. The continuous thickened slab footing measures one foot six inches wide by one foot deep and contains two continuous number 5 reinforcing bars with three inches of clear cover. A quarter-inch fillet weld secures the assembly. Actual stairs are pre-engineered by the steel fabricator and require shop drawings for review.
1'-6" C12x20.7 OR EQUAL STAIR STRINGER L 3x3x5/16 x 6" SLAB ON GRADE SEE PLAN 3" CLEAR 1'-6" x CONT. THICKENED SLAB FTG W/ (2) #5 CONT BARS 3/4" DIA EXPANSION BOLT NOTE: ACTUAL STAIRS TO BE PRE-ENGINEERED BY STEEL FABRICATOR. PROVIDE SHOP DRAWINGS FOR REVIEW. 1'-0" 1/4 / 7 I
