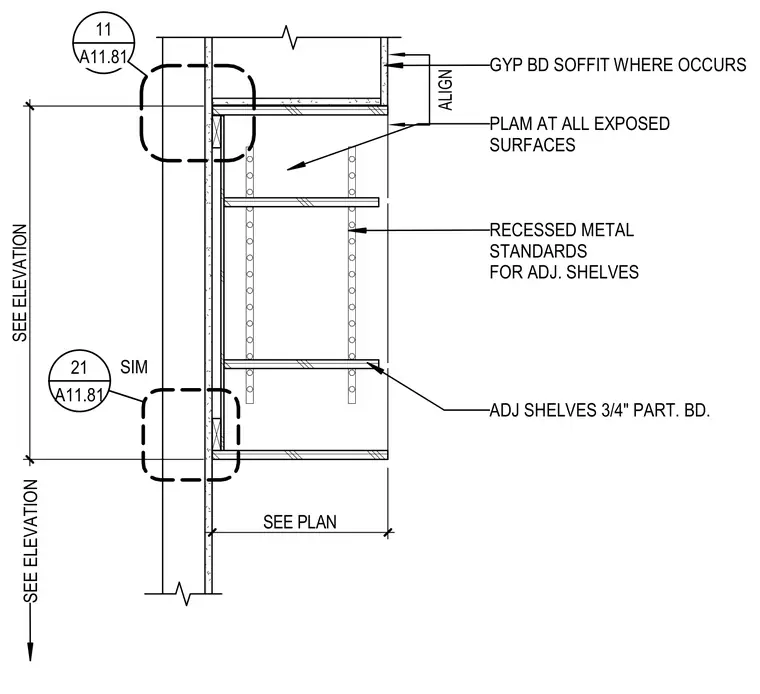

Adjustable shelves consist of three-quarter-inch particleboard supported by recessed metal standards mounted to the wall. Plastic laminate is applied to all exposed surfaces of the millwork. A gypsum board soffit is provided overhead where indicated, aligned with the upper cabinet face. Shelf depth and overall vertical dimensions are sized per plan and elevation.
SEE ELEVATION RECESSED METAL STANDARDS FOR ADJ. SHELVES ADJ SHELVES 3/4" PART. BD. GYP BD SOFFIT WHERE OCCURS A11.81 21 SIM A11.81 11 PLAM AT ALL EXPOSED SURFACES SEE ELEVATION SEE PLAN ALIGN
