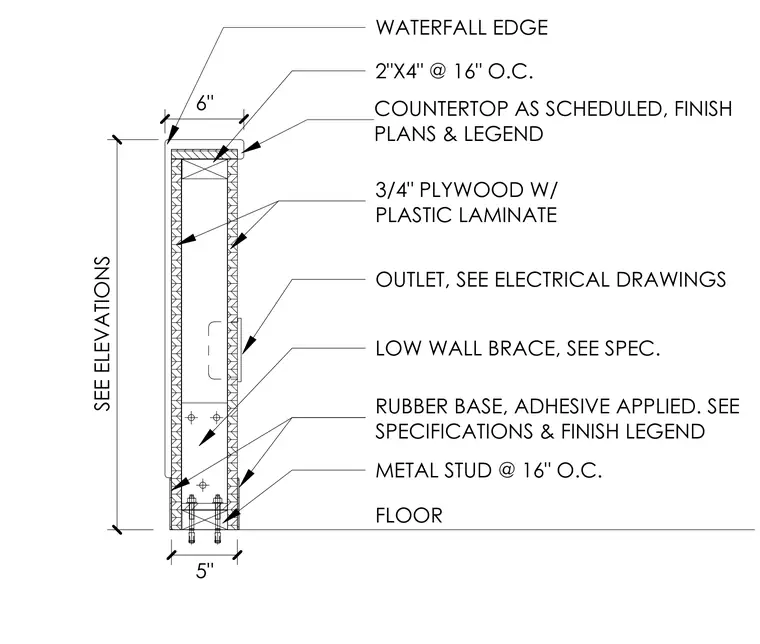

This interior millwork detail shows a low reception wall assembly anchored to the floor slab. The core consists of cold-formed metal studs spaced at sixteen inches on center with internal blocking and low wall bracing as specified. The exterior and interior faces are clad in three-quarter-inch plywood sheathing finished with plastic laminate. A scheduled countertop with a waterfall edge caps the top of the wall. An electrical outlet is integrated into the face of the partition, and a rubber base is applied with adhesive at the floor connection.
FLOOR SEE ELEVATIONS COUNTERTOP AS SCHEDULED, FINISH PLANS & LEGEND 2"X4" @ 16" O.C. METAL STUD @ 16" O.C. 3/4" PLYWOOD W/ PLASTIC LAMINATE RUBBER BASE, ADHESIVE APPLIED. SEE SPECIFICATIONS & FINISH LEGEND OUTLET, SEE ELECTRICAL DRAWINGS 5" 6" LOW WALL BRACE, SEE SPEC. WATERFALL EDGE
