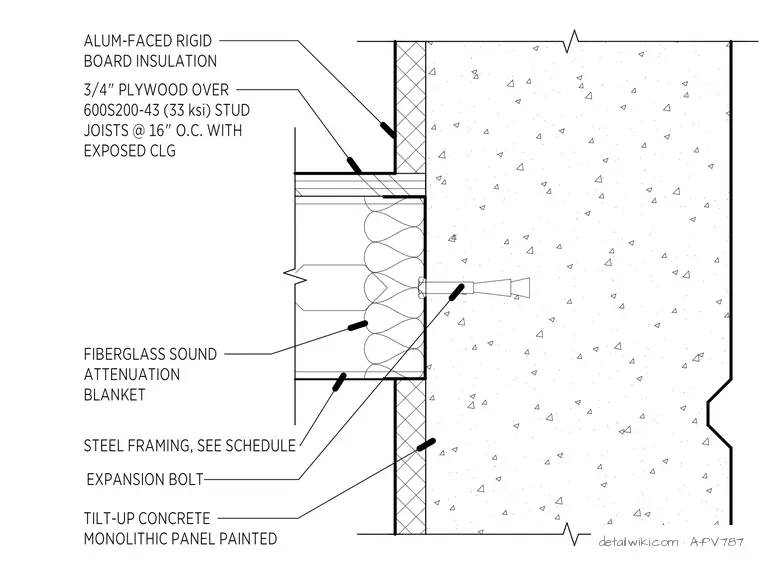

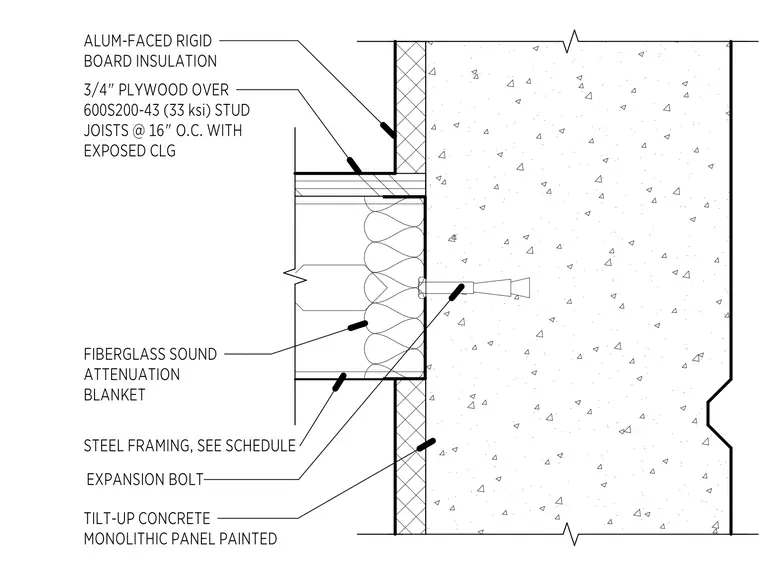

This assembly features cold-formed steel 600S200-43 (33 ksi) stud joists spaced at 16 inches on center, supporting a 3/4-inch plywood ceiling with an exposed finish. The joist ends are secured to a tilt-up concrete monolithic painted panel using an expansion bolt. The cavity between the joists contains a fiberglass sound attenuation blanket. The wall face is finished with aluminum-faced rigid board insulation applied to the interior side of the concrete panel.
