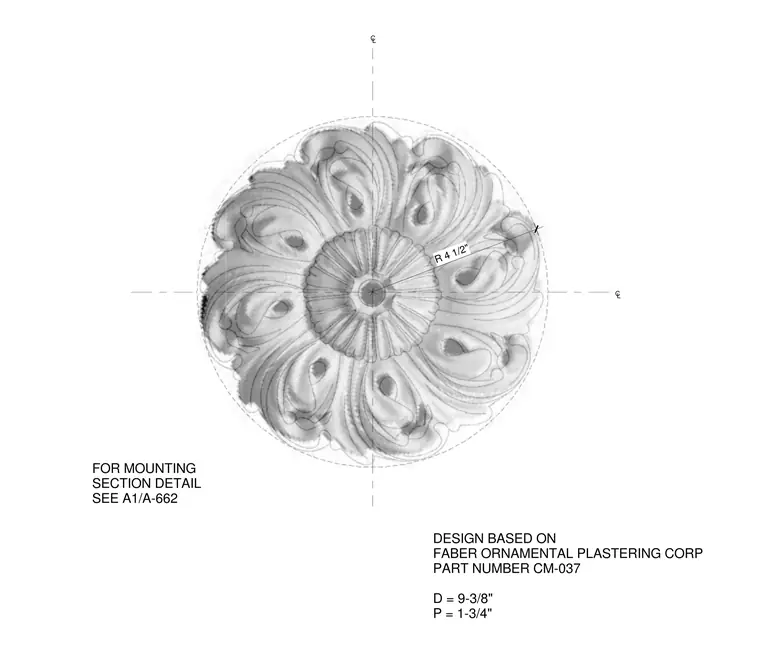

This custom ceiling rosette features a circular design with a four and a half inch radius centered on intersecting gridlines. The ornamental element is designed based on Faber Ornamental Plastering Corporation part number CM-037, with a diameter of nine and three-eighths inches and a projection of one and three-quarters inches. For mounting and installation section details, reference drawing A1 on sheet A-662.
CL CL R 4 1/2" DESIGN BASED ON FABER ORNAMENTAL PLASTERING CORP PART NUMBER CM-037 D = 9-3/8" P = 1-3/4" FOR MOUNTING SECTION DETAIL SEE A1/A-662
