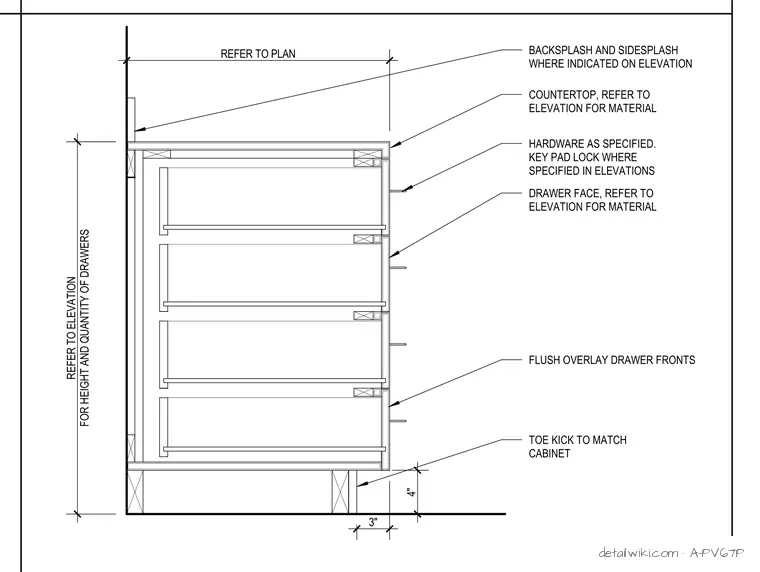

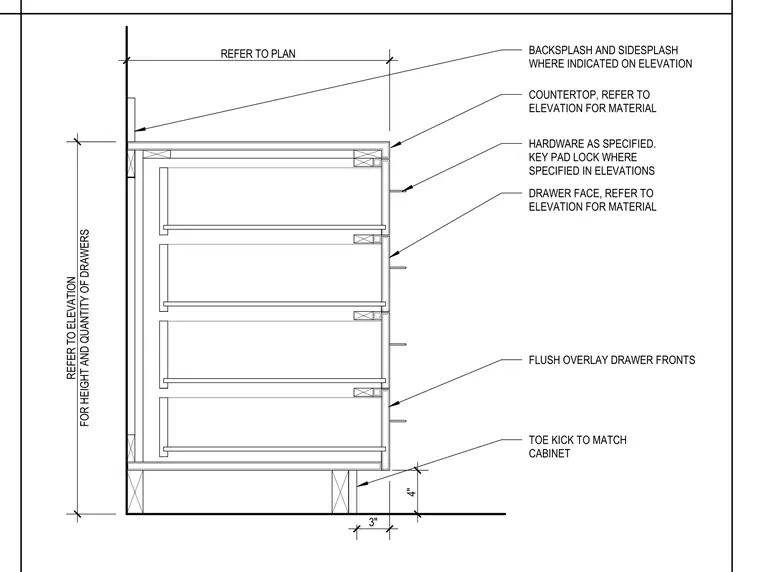

This base cabinet assembly features flush overlay drawer fronts with hardware and key pad locks as specified in the project elevations. The unit includes a countertop with backsplash and sidesplash where indicated. The base is supported by a toe kick measuring four inches high and three inches deep, finished to match the cabinet. Drawer height and quantity are determined by the project elevations, while materials for the countertop, drawer faces, and hardware are referenced in the elevation drawings.
Text on the drawing
FOR HEIGHT AND QUANTITY OF DRAWERS REFER TO ELEVATION REFER TO PLAN FLUSH OVERLAY DRAWER FRONTS DRAWER FACE, REFER TO ELEVATION FOR MATERIAL HARDWARE AS SPECIFIED. KEY PAD LOCK WHERE SPECIFIED IN ELEVATIONS 4" 3" TOE KICK TO MATCH CABINET BACKSPLASH AND SIDESPLASH WHERE INDICATED ON ELEVATION COUNTERTOP, REFER TO ELEVATION FOR MATERIAL
