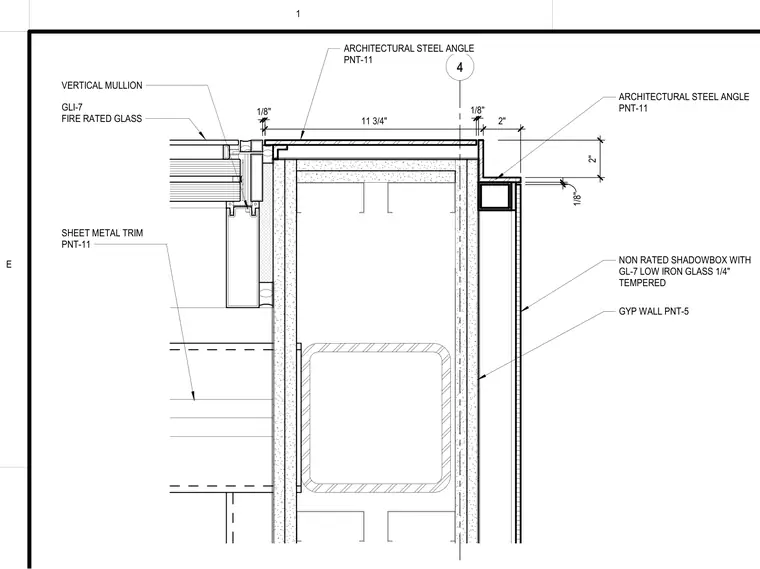

This plan detail shows a fire-rated glass assembly meeting a corner condition with a non-rated shadowbox. The construction features GLI-7 fire-rated glass secured in a vertical mullion, finished with PNT-11 sheet metal trim. Architectural steel angles finished with PNT-11 frame the corner junction and abut the gypsum wall assembly finished with PNT-5. A non-rated shadowbox containing one-quarter-inch tempered GL-7 low-iron glass is integrated into the adjacent return wall.
4 GLI-7 FIRE RATED GLASS VERTICAL MULLION ARCHITECTURAL STEEL ANGLE PNT-11 SHEET METAL TRIM PNT-11 2 " 1 1 3 / 4 " 2 " 1 / 8 " 1 / 8 " 1 / 8 " ARCHITECTURAL STEEL ANGLE PNT-11 NON RATED SHADOWBOX WITH GL-7 LOW IRON GLASS 1/4" TEMPERED GYP WALL PNT-5 E 1
