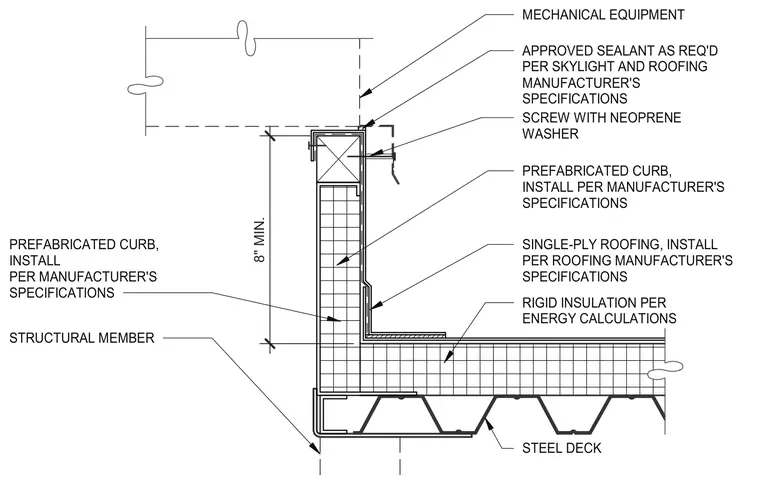

The assembly rests on a steel deck supporting rigid insulation per energy calculations, with single-ply roofing installed continuously up the vertical face of the prefabricated curb. The prefabricated curb maintains an eight-inch minimum height above the roof line and is fastened according to manufacturer specifications. Mechanical equipment bears on top of the curb, secured with screws featuring neoprene washers. Approved sealant is applied at the interface per the manufacturer's requirements.
STEEL DECK SINGLE-PLY ROOFING, INSTALL PER ROOFING MANUFACTURER'S SPECIFICATIONS PREFABRICATED CURB, INSTALL PER MANUFACTURER'S SPECIFICATIONS MECHANICAL EQUIPMENT SCREW WITH NEOPRENE WASHER APPROVED SEALANT AS REQ'D PER SKYLIGHT AND ROOFING MANUFACTURER'S SPECIFICATIONS STRUCTURAL MEMBER RIGID INSULATION PER ENERGY CALCULATIONS PREFABRICATED CURB, INSTALL PER MANUFACTURER'S SPECIFICATIONS 8" MIN.
