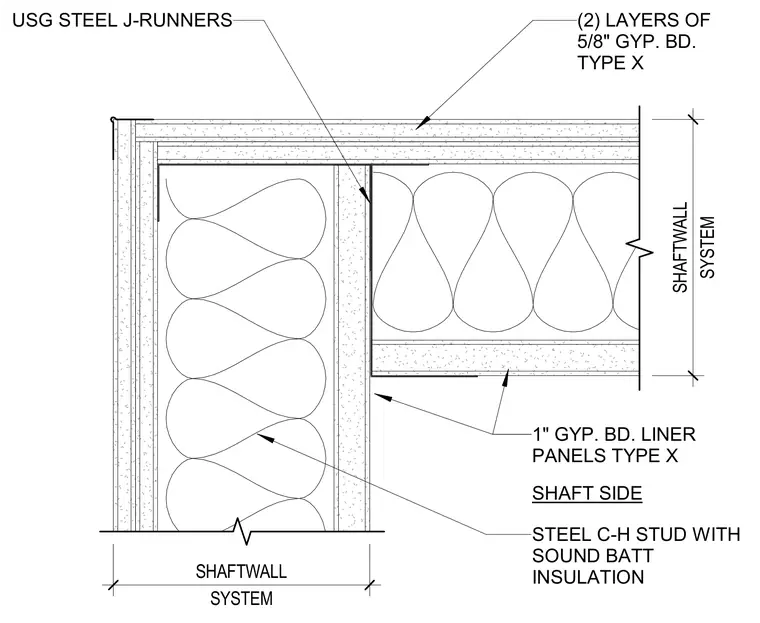

An outside corner junction of a gypsum shaftwall assembly features steel C-H studs with sound batt insulation and one-inch gypsum board liner panels type X. The outer layers consist of two layers of five-eighths-inch gypsum board type X secured with USG steel J-runners framing the corner transition.
USG STEEL J-RUNNERS 1" GYP. BD. LINER PANELS TYPE X STEEL C-H STUD WITH SOUND BATT INSULATION (2) LAYERS OF 5/8" GYP. BD. TYPE X SHAFT SIDE SYSTEM SHAFTWALL SYSTEM SHAFTWALL
