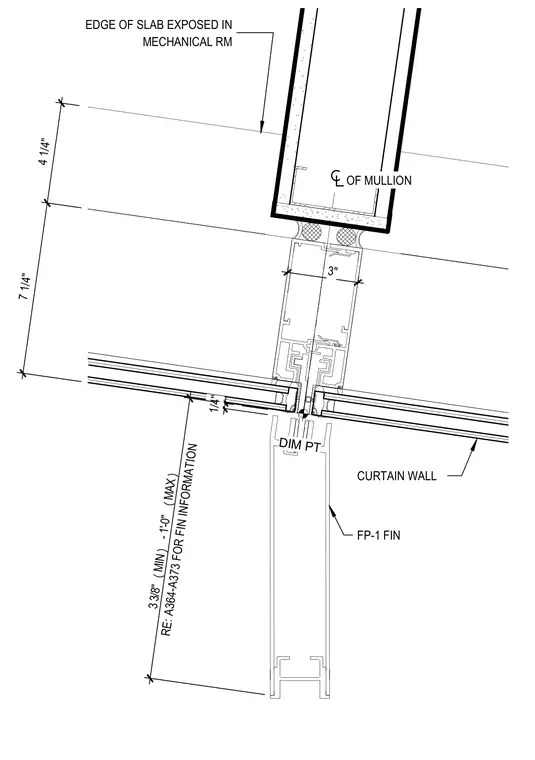

A curtain wall intersection occurs near the edge of a concrete slab in a mechanical room, featuring an FP-1 exterior structural fin attached to the mullion centerline. A dimension of 7-1/4 inches spans from the slab edge to the centerline of the mullion, with a 4-1/4 inch offset to the slab face. The exterior aluminum fin measures 1/4 inch thick and has a variable projection ranging from 3-3/8 inches minimum to 1 foot 0 inches maximum. Additional fin information is referenced on sheet series A364 through A373.
DIM PT CURTAIN WALL 3 " EDGE OF SLAB EXPOSED IN MECHANICAL RM 7 1 / 4 " 4 1 / 4 " OF MULLION FP-1 FIN 1 / 4 " R E : A 3 6 4 - A 3 7 3 F O R F I N I N F O R M A T I O N 3 3 / 8 " ( M I N ) - 1 ' - 0 " ( M A X )
