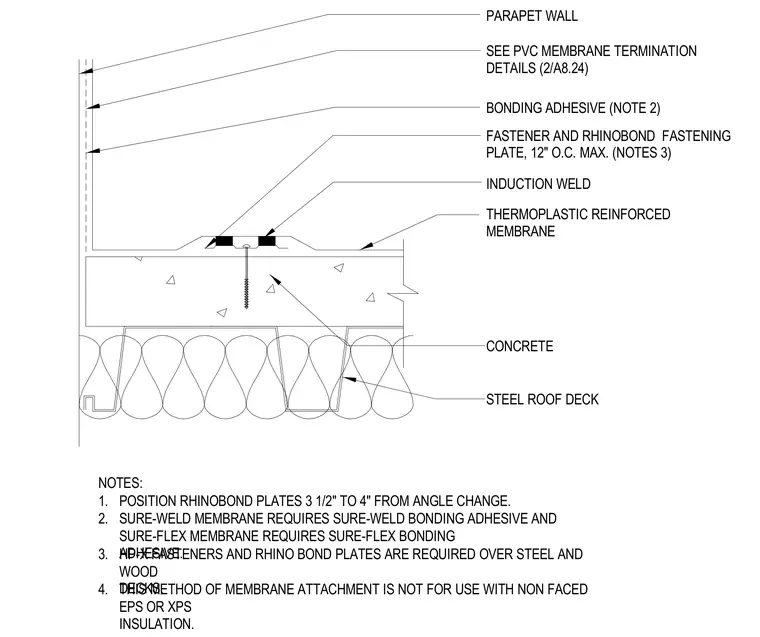

A thermoplastic reinforced membrane is adhered to the parapet wall using bonding adhesive and secured horizontally across the roof deck using HP-X fasteners and RhinoBond fastening plates spaced at a maximum of 12 inches on center. The plates are induction welded to the underside of the thermoplastic membrane, positioned 3.5 to 4 inches from the angle change. The assembly bears on a concrete topping slab over a corrugated steel roof deck with insulation. This attachment method is restricted from use with non-faced expanded polystyrene or extruded polystyrene insulation.
BONDING ADHESIVE (NOTE 2) THERMOPLASTIC REINFORCED MEMBRANE FASTENER AND RHINOBOND FASTENING PLATE, 12" O.C. MAX. (NOTES 3) INDUCTION WELD STEEL ROOF DECK PARAPET WALL NOTES: 1. POSITION RHINOBOND PLATES 3 1/2" TO 4" FROM ANGLE CHANGE. 2. SURE-WELD MEMBRANE REQUIRES SURE-WELD BONDING ADHESIVE AND SURE-FLEX MEMBRANE REQUIRES SURE-FLEX BONDING ADHESIVE. 3. HP-X FASTENERS AND RHINO BOND PLATES ARE REQUIRED OVER STEEL AND WOOD DECKS. 4. THIS METHOD OF MEMBRANE ATTACHMENT IS NOT FOR USE WITH NON FACED EPS OR XPS INSULATION. SEE PVC MEMBRANE TERMINATION DETAILS (2/A8.24) CONCRETE
