Architectural · A-PTHF6

Top of Stair Landing and Intermediate Landing Detail

Materials

Elements

About this detail

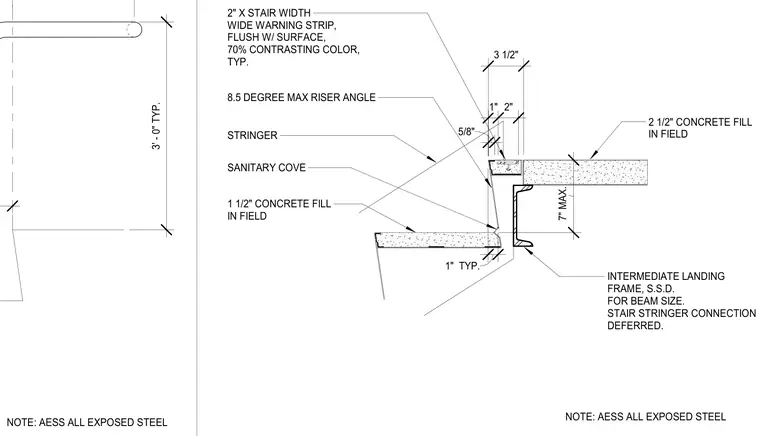

The intermediate landing features two and a half inches of concrete fill placed in the field supported by a landing frame with beam size per structural steel drawings, and the stair stringer connection is deferred. The stair run includes one and a half inches of concrete fill in the field, a sanitary cove, a stair stringer, and a two-inch wide warning strip flush with the surface providing seventy percent contrasting color. Dimensional constraints include a seven-inch maximum rise, an eight and a half degree maximum riser angle, and typical three-foot heights for exposed steel designated as architecturally exposed structural steel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
