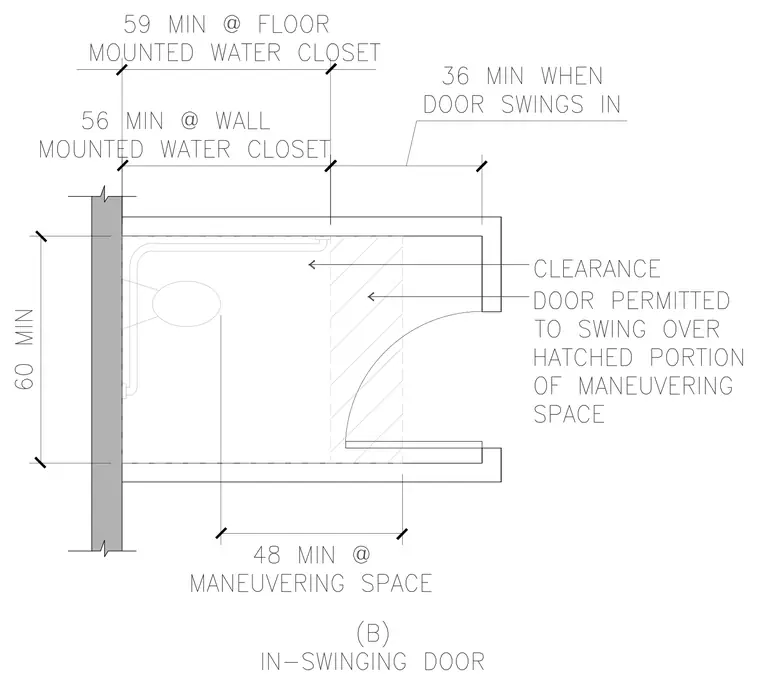

An accessible water closet compartment layout indicates strict spatial requirements for grab bars and door swings. A minimum width of 60 inches is maintained from the side wall. Depth dimensions require a minimum of 59 inches at floor-mounted water closets and 56 inches at wall-mounted water closets. The maneuvering space requires a minimum depth of 48 inches with a 36-inch clearance when the door swings in. The door is permitted to swing over the hatched portion of the maneuvering space.
