Stairway Signage and Fire Exit Plaque Details

Materials

Elements

Stairs Floors / Slabs Connections / Plates

About this detail

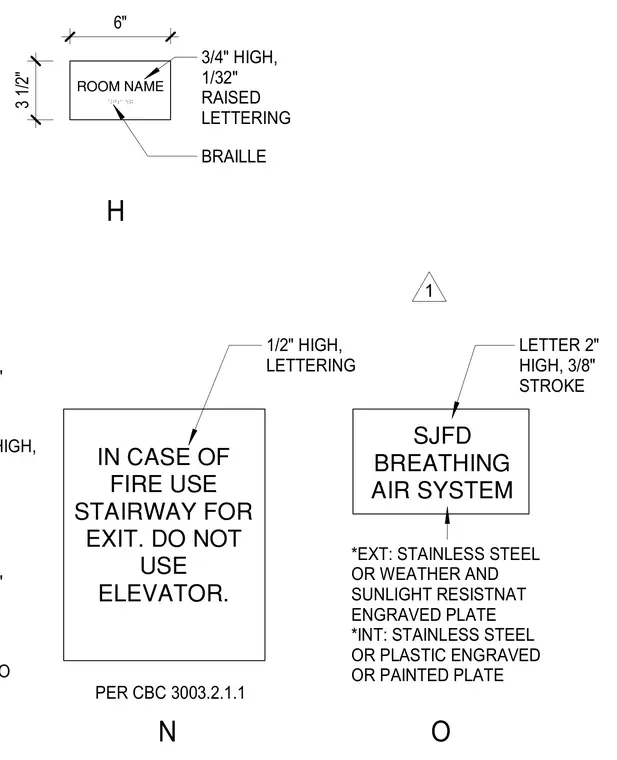

Signage details include a six-inch by three-and-a-half-inch room name plaque with three-quarter-inch high raised lettering and Braille. A fire exit advisory sign requires half-inch high lettering per California Building Code 3003.2.1.1. An SJFD breathing air system sign specifies two-inch high lettering with a three-eighths-inch stroke. Exterior signs require stainless steel or weather and sunlight resistant engraved plates, while interior signs permit stainless steel, engraved plastic, or painted plates.
