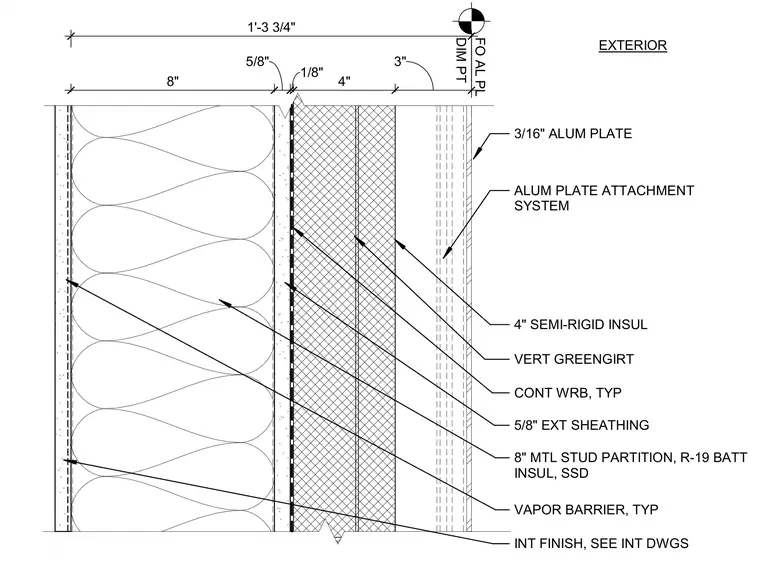

An exterior wall assembly features an interior finish over an eight-inch metal stud partition filled with R-19 batt insulation and a vapor barrier. The exterior side receives a five-eighths-inch exterior sheathing, a continuous weather-resistive barrier, four inches of semi-rigid insulation, and vertical green girts. An aluminum plate attachment system supports a three-sixteenths-inch exterior aluminum plate cladding.
EXTERIOR 4" SEMI-RIGID INSUL CONT WRB, TYP 5/8" EXT SHEATHING INT FINISH, SEE INT DWGS FO AL PL DIM PT 8" MTL STUD PARTITION, R-19 BATT INSUL, SSD VERT GREENGIRT 8" 5/8" 1/8" 4" 3" 1'-3 3/4" 3/16" ALUM PLATE ALUM PLATE ATTACHMENT SYSTEM VAPOR BARRIER, TYP
