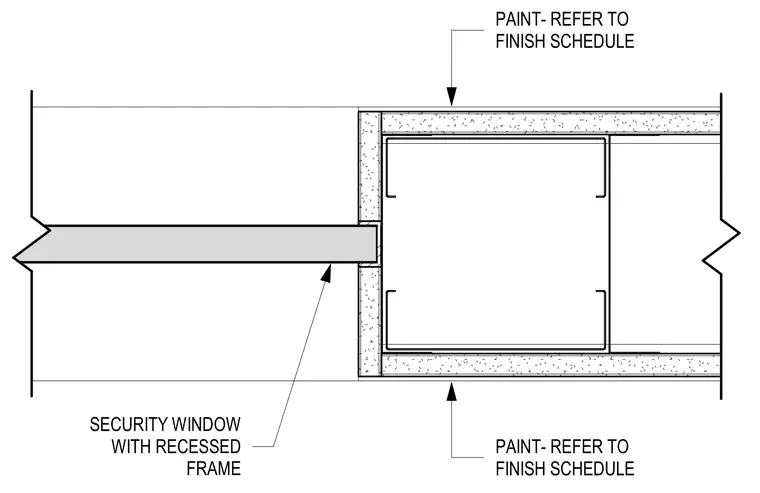

Security window jamb assembly with a recessed metal frame set within a partition wall. Glazing is captured by the frame, flanked by gypsum wallboard on both sides. Exterior surfaces of the wall assembly are designated to receive paint as specified in the finish schedule.
