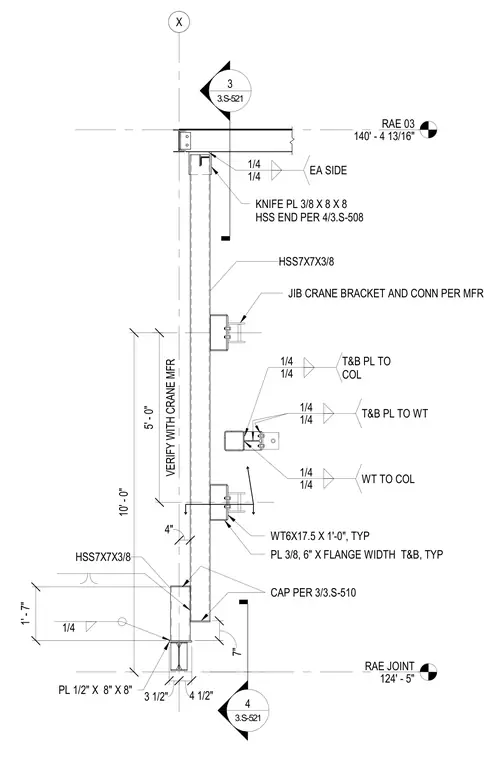

A hollow structural section column designated as HSS 7x7x3/8 anchors the jib crane column connection assembly. A top knife plate measuring 3/8 inch by 8 inches by 8 inches is welded to the column end with 1/4-inch fillet welds on each side. Typical WT6x17.5 structural tees measuring 1 foot 0 inches in length provide intermediate support and connect to the hollow structural section column using 1/4-inch fillet welds. Plates measuring 3/8 inch thick by 6 inches by the flange width are welded top and bottom to the structural tees with 1/4-inch fillet welds. The jib crane bracket and connection are mounted per the manufacturer specifications, with vertical dimensions verified with the crane manufacturer.
RAE JOINT 124' - 5" RAE 03 140' - 4 13/16" X 4" 1/4 3 3.S-521 10' - 0" VERIFY WITH CRANE MFR 5' - 0" 1/4 1/4 T&B PL TO COL 1/4 1/4 WT TO COL 1/4 1/4 T&B PL TO WT PL 3/8, 6" X FLANGE WIDTH T&B, TYP WT6X17.5 X 1'-0", TYP JIB CRANE BRACKET AND CONN PER MFR KNIFE PL 3/8 X 8 X 8 HSS END PER 4/3.S-508 1/4 1/4 EA SIDE PL 1/2" X 8" X 8" 4 3.S-521 1' - 7" 7" CAP PER 3/3.S-510 HSS7X7X3/8 HSS7X7X3/8 3 1/2" 4 1/2"
