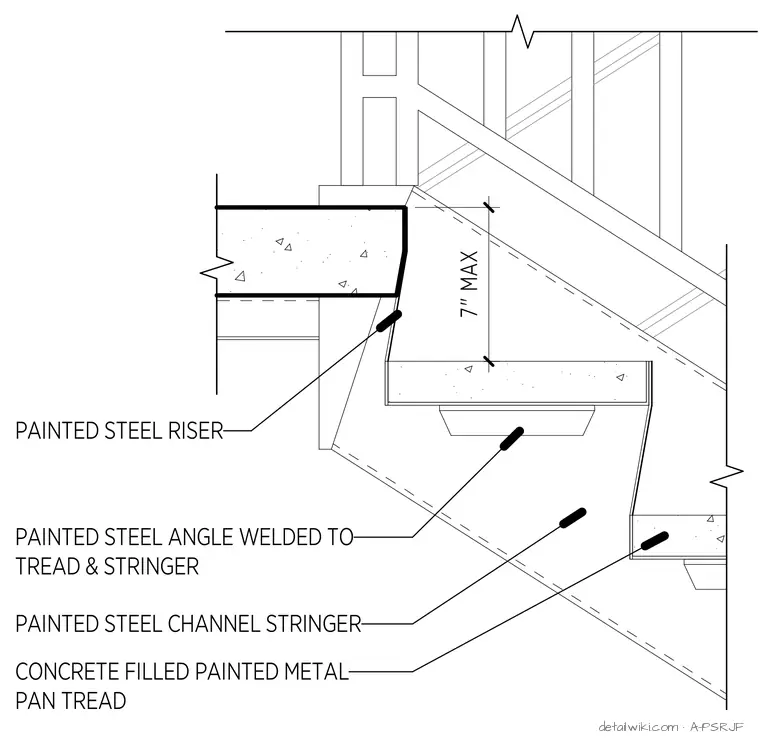

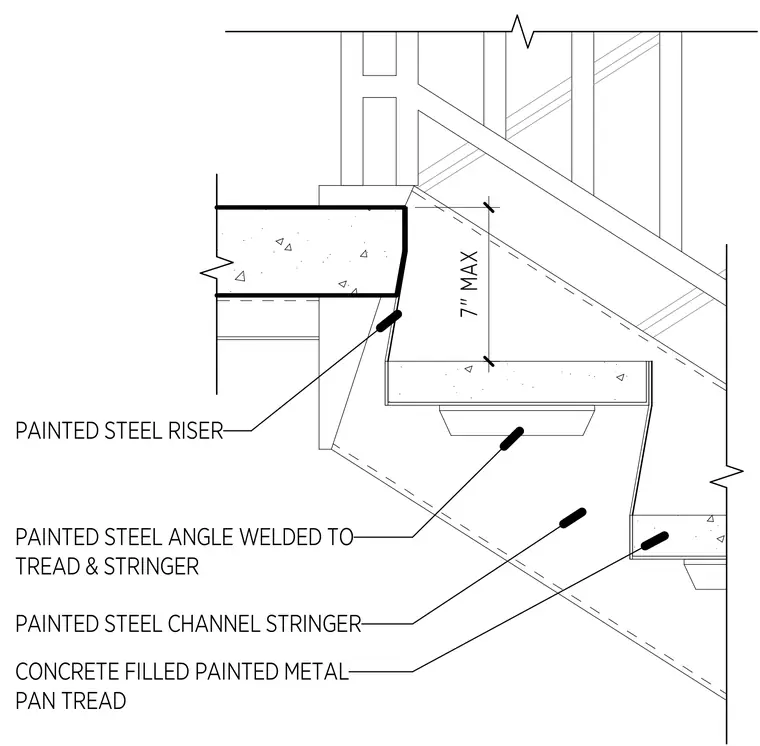

This assembly features a concrete-filled painted metal pan tread supported by a painted steel channel stringer. The tread is secured to the stringer using a painted steel angle welded to both the tread and the stringer. A painted steel riser connects the tread assembly to the concrete landing, maintaining a maximum riser height of seven inches. The stair structure is integrated with a railing system above the landing.
