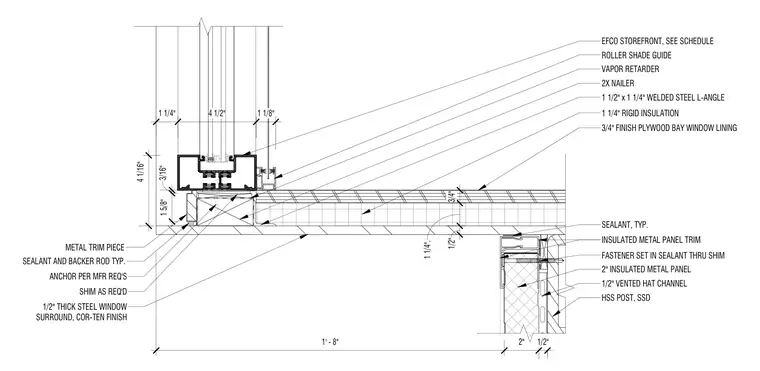

This plan detail shows the jamb condition of a bay window meeting an insulated metal panel exterior wall assembly. An Efco storefront window system with a roller shade guide sits adjacent to a 1 1/2-inch by 1 1/4-inch welded steel L-angle. A 1/2-inch thick Cor-ten finish steel window surround is anchored to the substrate with shims and fasteners set in sealant. The interior includes a 3/4-inch finish plywood bay window lining over a vapor retarder and rigid insulation. Exterior cladding consists of 2-inch insulated metal panels mounted over 1/2-inch vented hat channels and HSS posts, finished with metal trim pieces and sealant with backer rod.
EFCO STOREFRONT, SEE SCHEDULE ROLLER SHADE GUIDE 2X NAILER 1 1/2" x 1 1/4" WELDED STEEL L-ANGLE SEALANT, TYP. INSULATED METAL PANEL TRIM 2" INSULATED METAL PANEL 1/2" VENTED HAT CHANNEL HSS POST, SSD SEALANT AND BACKER ROD TYP. VAPOR RETARDER 1 1/4" RIGID INSULATION METAL TRIM PIECE 1/2" THICK STEEL WINDOW SURROUND, COR-TEN FINISH 3/4" FINISH PLYWOOD BAY WINDOW LINING 1 1/4" 4 1/2" 1 1/8" 4 1/16" 3/16" 1 5/8" 3/4" 1 1/4". 1/2" SHIM AS REQ'D ANCHOR PER MFR REQ'S 1/2" 2" 1' - 8" FASTENER SET IN SEALANT THRU SHIM
