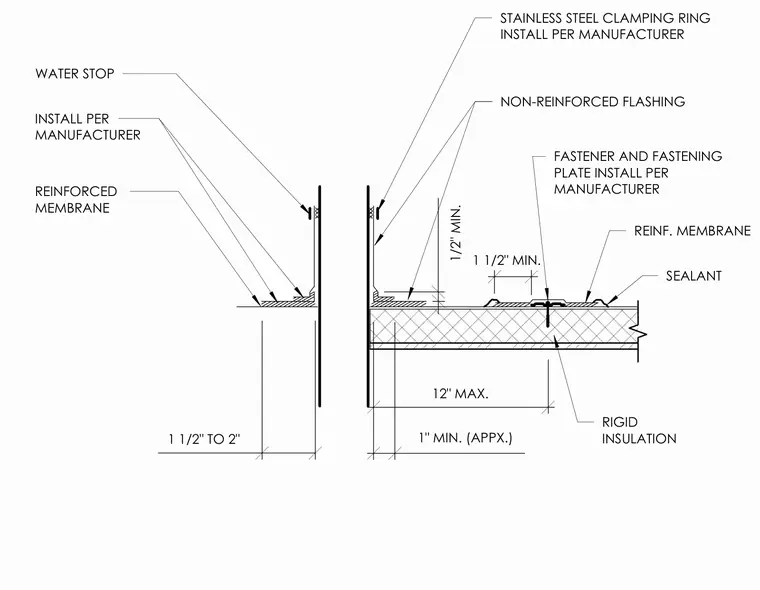

A field fabricated pipe penetration flashing assembly over rigid insulation. A reinforced membrane waterproofing layer extends across the insulation, secured by mechanical fasteners and fastening plates installed per the manufacturer's recommendations. A stainless steel clamping ring and water stop seal the vertical pipe penetration, complemented by non-reinforced flashing and sealant.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION
