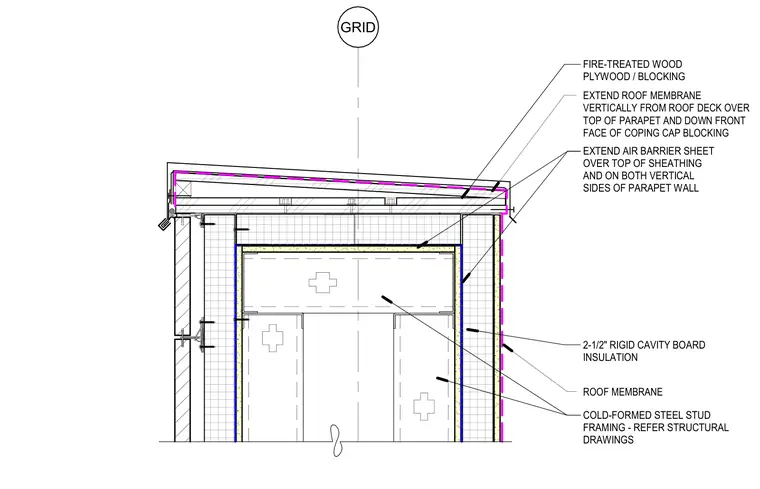

Cold-formed steel stud framing supports the parapet wall and carries fire-treated wood plywood and blocking at the top. An air barrier sheet extends continuously over the top of the sheathing and down both vertical sides of the parapet wall. Two and one-half inch rigid cavity board insulation covers the exterior. The roof membrane extends vertically from the roof deck, passes over the top of the parapet, and extends down the front face of the coping cap blocking.
GRID EXTEND AIR BARRIER SHEET OVER TOP OF SHEATHING AND ON BOTH VERTICAL SIDES OF PARAPET WALL COLD-FORMED STEEL STUD FRAMING - REFER STRUCTURAL DRAWINGS 2-1/2" RIGID CAVITY BOARD INSULATION EXTEND ROOF MEMBRANE VERTICALLY FROM ROOF DECK OVER TOP OF PARAPET AND DOWN FRONT FACE OF COPING CAP BLOCKING ROOF MEMBRANE FIRE-TREATED WOOD PLYWOOD / BLOCKING
